Čo je grafická fólia? Inžinierska príručka k fóliovým predným panelom

When a customer first encounters your product, their overall impression of its quality is determined by what they see and touch. It's not the finished wiring or the precise internal engineering; it's the control panel. This complex element, known as the graphic foil or foil front panel, acts as a "handshake" between the user and your device.

Often thought of as just a simple "sticker" or "label," high-performance graphic film is actually a sophisticated, multi-layered technical component. It must simultaneously fulfill three demanding tasks: serve as an intuitive user interface, act as a protective shield for sensitive electronics, and represent your brand identity.

This introductory guide will explore the basic "what, why, and where" of graphic foils and explain why choosing the right one is a critical engineering decision, not the final aesthetic choice.

Destructuring the graphics layer: What is it?

A graphic overlay is a durable, printed top layer of a control panel, keypad, or electronic device. It is a custom-made component made from rigid plastic films such as polyester or polycarbonate. While it may appear to be a single piece, it is actually a technical laminate consisting of at least three clearly defined layers:

1. Substrate: This is the top, transparent film that provides strength and durability. Its thickness and material are chosen according to the specific requirements of the application.
2. Graphic Layer: This is the print. For high-performance films, this layer is "subsurface printed," meaning it is printed on the back of the top film—an important detail that we will cover later.
3. Adhesive layer: A specialized, high-performance adhesive on the back bonds the entire film to the cover of your product or control panel.

Three basic functions of a foil front panel

Graphic foil is not a passive element; it is an active and essential part of your product design.

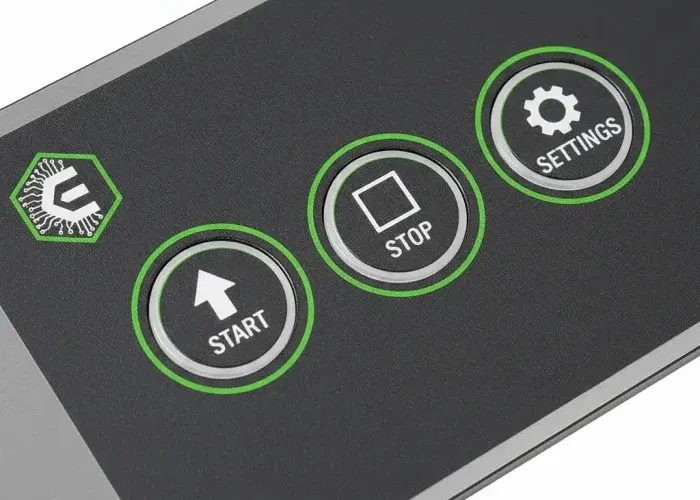

1. User Interface (UI): Communication function This is the most obvious task. The foil turns a blank switch panel into an intuitive device. It clearly communicates function, workflow, and safety information to the operator. On a medical device, it guides a nurse through critical procedures. On industrial machinery, it marks the "START," "STOP," and "EMERGENCY" buttons, reducing human error and improving efficiency.

2. Protective Shield: Protecting the Electronics The foil is the product's first line of defense against its operating environment. A well-designed foil is often hermetically sealed, protecting the sensitive electronics and switches underneath from:

• Moisture and spilled liquids: Prevents short circuits (critical in gastronomy or medicine).
• Dust and dirt: Essential in harsh industrial or construction environments.
• Chemicals: Designed to withstand strong hospital disinfectants, industrial solvents and oils.
• Abrasion: Protects the panel from scratches, scuffs and repeated use.

3. Brand Ambassador: The "Face" of Your Product Graphic film is the "face" of your product. It is the first thing the consumer sees and the element that carries your company's logo, colors, and design language. A sharp, distinctive, and durable film signals a quality, professional product. Conversely, film that peels, fades, or is scratched can make even the most expensive machine look cheap and unreliable.

Applications: Where are graphic films used?

Thanks to this unique combination of strength, functionality, and aesthetics, custom graphic films are a common part of almost every high-performance industry. You can find them at:

• Medical and dental devices: Patient monitors, diagnostic instruments, laboratory analyzers and hospital bed controls.
• Industrial machinery: Factory control panels, CNC machine interfaces, heavy equipment and hand-held test instruments.
• Aerospace and military: On-board instrument panels, communication equipment and rugged off-road technology
• Gastronomy and appliances: Professional coffee machines, ovens, microwaves and refrigerators.
• Electronics and POS systems: Audio-visual equipment, self-service kiosks, retail cash registers, and fitness equipment consoles.

Conclusion:

Graphic film is not just any label. It is a precision engineered element that must perform flawlessly throughout the life of your product. Unlike a vinyl sticker, it is manufactured to precise tolerances, printed on the backside for lasting durability, and assembled from elements designed to withstand chemical, physical, and environmental stress.

Understanding the complex roles your foil front panel layer plays is the first step to designing an interface that is reliable, intuitive, and professional.

In our next article, we will explore the most critical first step in this design process: how to properly analyze your product's operating environment to prevent premature failure.
